Sample Case: Setting Up for 5 Stack Ups Using Single Trigger

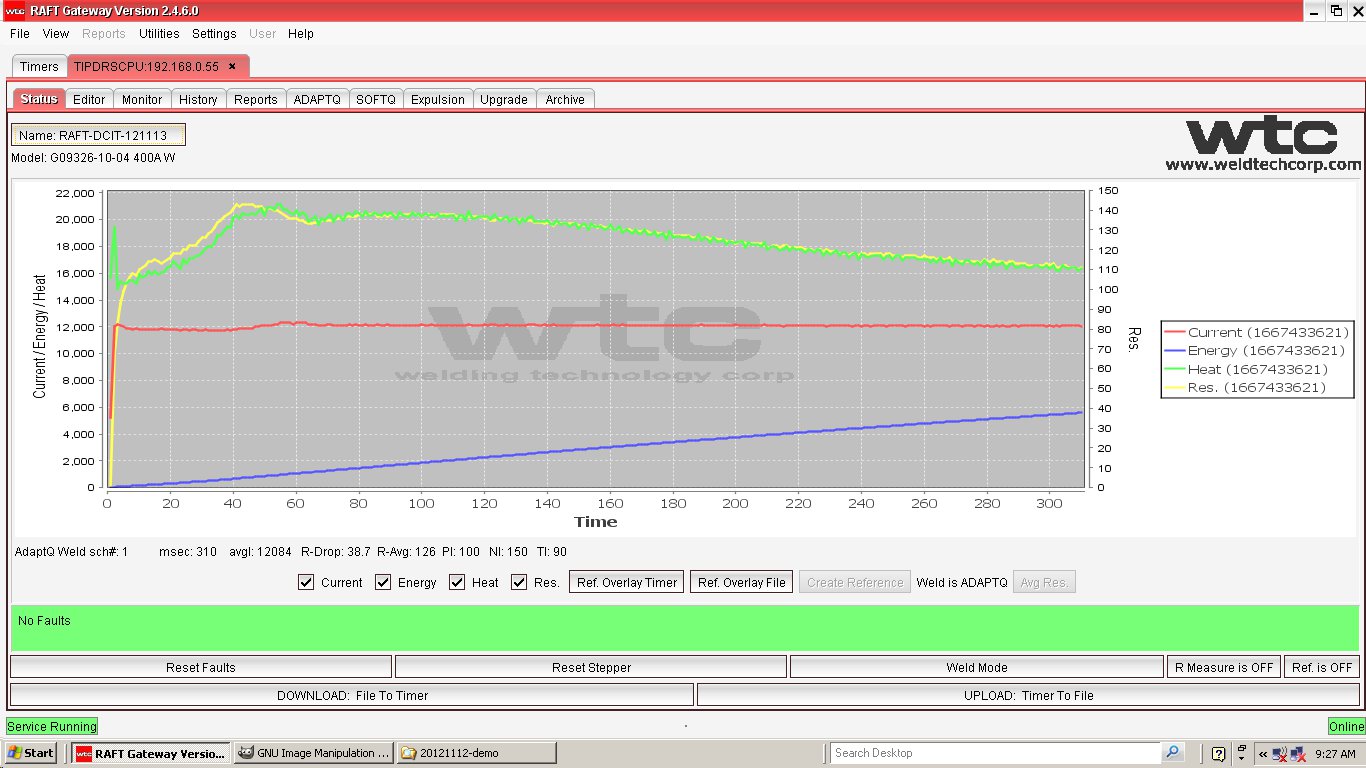

Testing the Adaptive Performance : Stack No 5
Welding of this nugget was performed in 310mS with an average current of 12084A. The observed Resistance Drop measured 38.7%. This compares to the reference setup of stack 1 of 179mS with a current regulation schedule of 12000A.
