The Wave is a portable weld current meter that is capable of measuring weld current in various forms including AC, AC inverter and Mid Frequency to DC (MFDC). The Wave can also measure and tip voltage across electrodes.

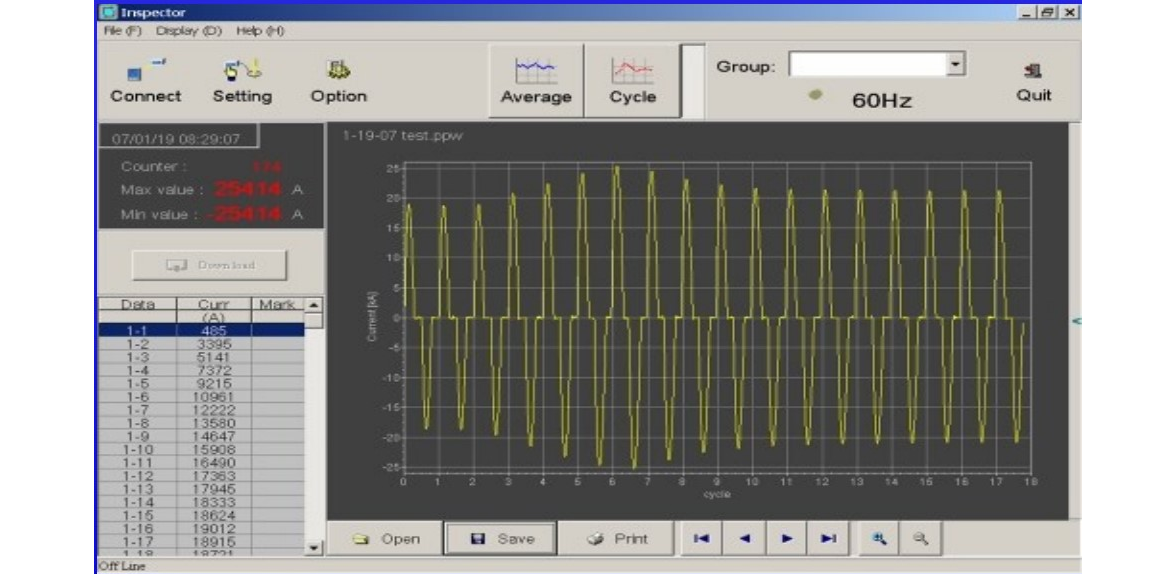

The Wave is engineered for easy data collection in busy manufacturing environments where portability and precision is required. Waveform and weld data is collected on The Wave via a secondary current coil loop and tip voltage is collect via electrode tip wires. The data that is collected can then be stored on the internal memory of The Wave (up to 10,000 welds) or it can be downloaded to a computer via USB cable.

Key Features

  Measure AC, MFDC Inverter, AC Inverter weld current, voltage, and time
 Selectable time measurement: Cycles or milliseconds
  Automatic collection and storage of 10,000 weld data-points
  Anytime data monitoring
  Durable and flexible current coil and voltage leads
