Detailed Description of the "Ohma® Cylinder"
The "Ohma® Cylinder" designed by Centerline (Windsor) Ltd.

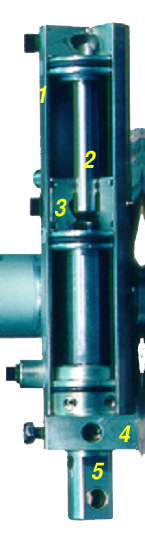

consists of a small bore (1.75", 2" or 2.625") barrel
(#1) , a visible working piston (#5), an internal
intensifier piston (#2), an internal middle separator
(#3) and a mounting block (#4).
Return Port (Air) Intensifier Port (Air) Advance Port (Fluid) The outside of the barrel is fitted with an air manifold that is used to route return air pressure to the rear of the cylinder in order to retract the internal intensifier piston. The OHMA cylinder has several mounting style configurations that are designed either for specific transgun styles or stand-alone weld cylinder applications.
