Adjust the weld tip force to be the mean of the minimum and maximum settings for gun tip pressure = (2.60 + 3.60) / 2 = 3.10 kN = 697 lbs

02-A: The DCIT station has a pneumatic system that needs to be setup. Incoming air is routed through mechanical valves, adjustable regulators, and then a programmable regulator that takes command from the welding processor.

Setup the pneumatic interface

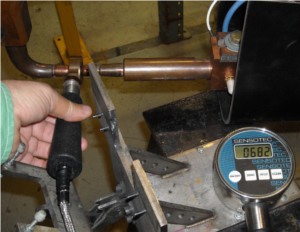

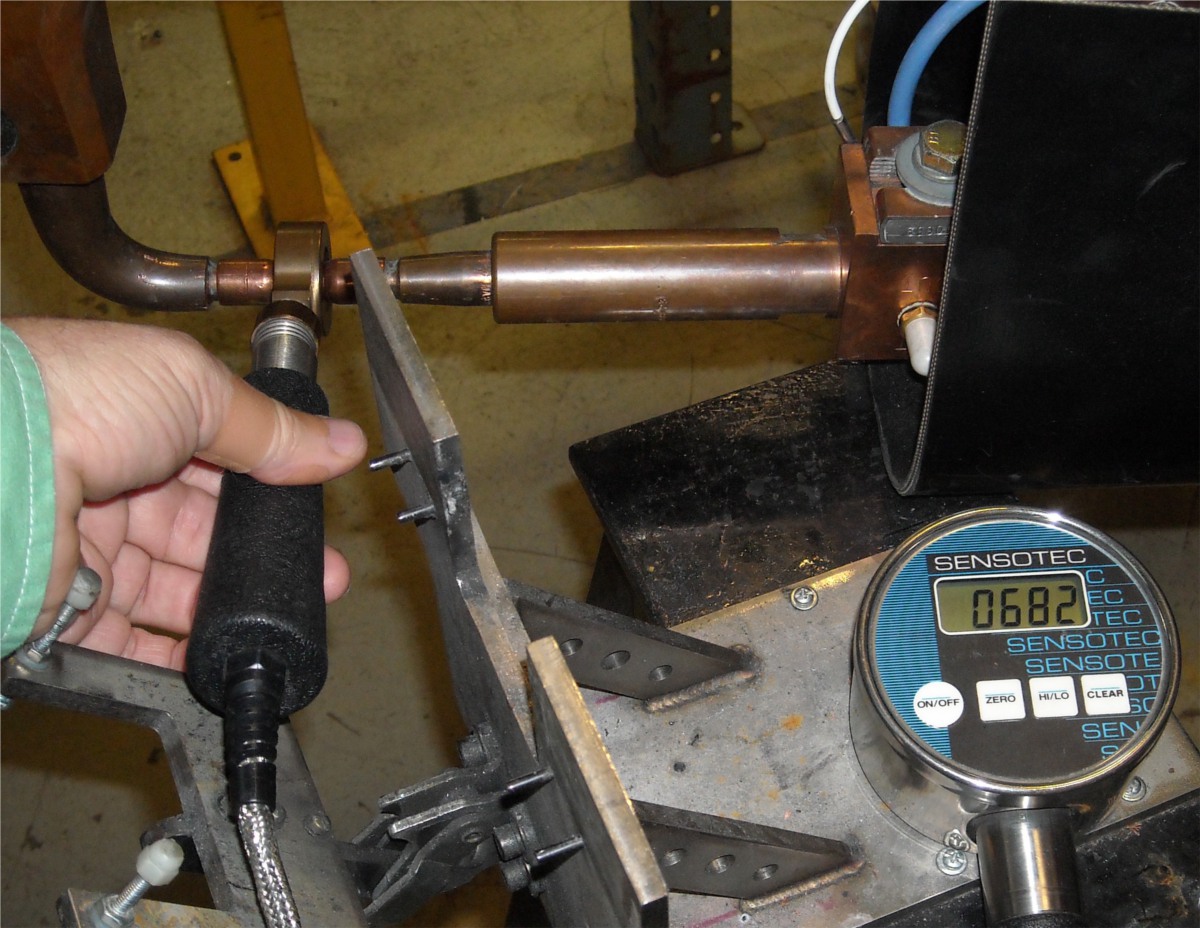

02-B: Program the pressure value in the schedule to obtain 3.10 kN (697 lbs) +/- 90 N (+/- 20 lbs) (value from 00 to 99). Check the force by sequencing the DCIT station in NO-WELD several times to see that the force is attaining the desired force. Note the value of the pressure setting that corresponds to the desired electrode force.

This adjustment is made by programming the pressure in the weld schedule.
